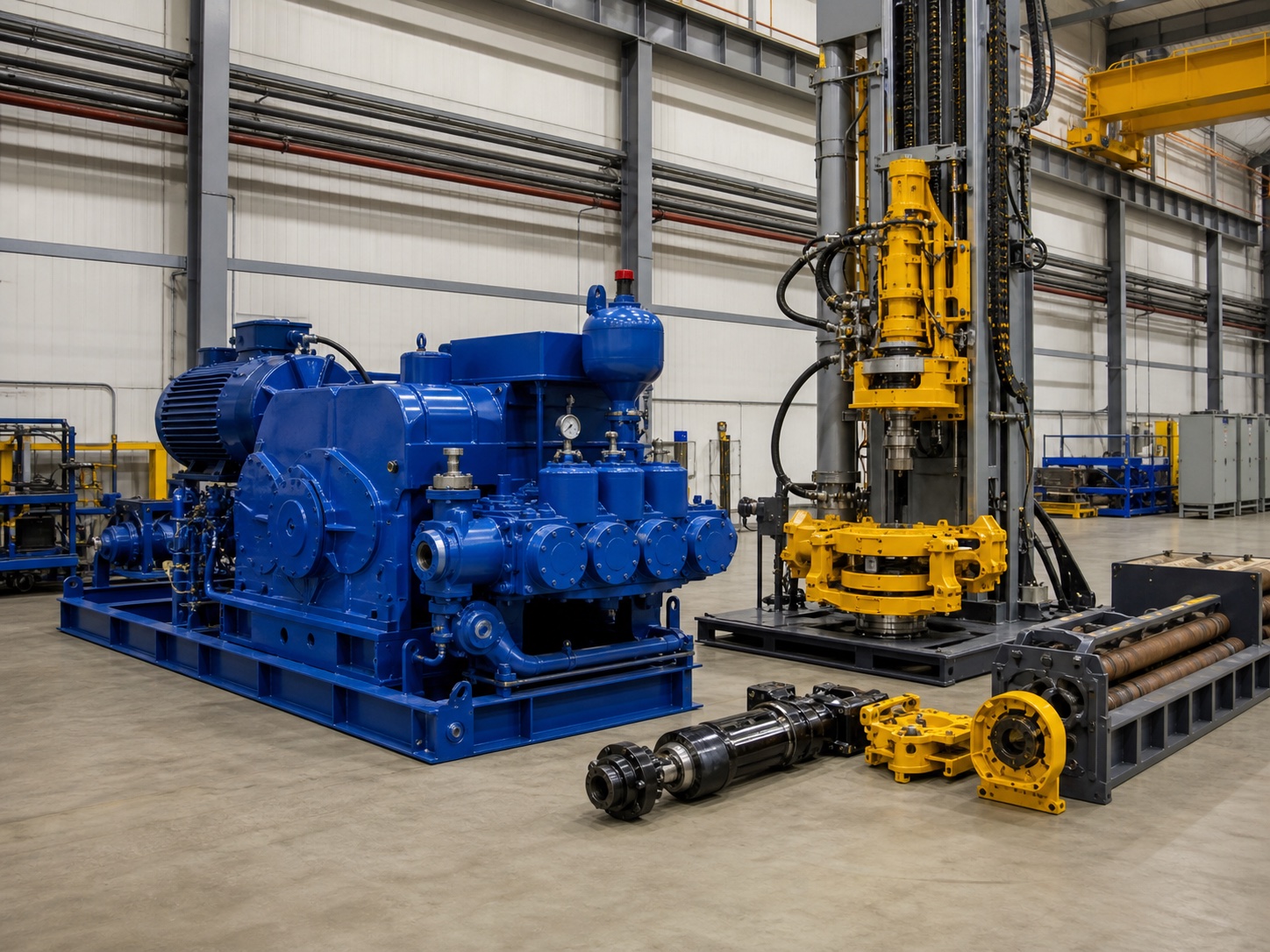

Equipment-category illustration. It does not identify a specific manufacturer or exact product model, and does not confirm stock or certification.
Mud Pump & Rig Spare Parts
Triplex and Quintuplex Drilling Mud Pumps
High-horsepower triplex and quintuplex mud pumps with reference packages up to 2400 HP, 51.7 MPa discharge pressure and 105-127 SPM rated speed.
Published model comparison
Reference fields for quotation comparison. Final values must be confirmed in the signed manufacturer datasheet.
| Parameter | Reference value | Notes |
|---|---|---|
| P-2200 power and speed | 1642 kW / 2200 HP105 SPM | Triplex reference model |
| P-2200 hydraulic data | 51.7 MPa maximum pressure355.6 mm stroke; 230 mm maximum liner39200 kg | Use the liner-specific performance table |
| AP-2400 power and speed | 1800 kW / 2400 HP127 SPM | Quintuplex reference model |
| AP-2400 hydraulic data | 51.7 MPa maximum pressure300 mm stroke; 190 mm maximum liner | Confirm metric or imperial liner supply |
Model-specific technical reference
Compare a real pressure-flow pair
The APEX P-2200 manufacturer's metric performance table lists, at 105 strokes per minute, a 230 mm liner with 18.6 MPa output pressure and 4,769 L/min flow. Its 130 mm liner row instead lists 51.7 MPa and 1,488 L/min. Maximum family flow and maximum family pressure therefore are not one operating point. Request the intended liner-size performance row, drive rating, efficiency basis and relief settings. The cited table is not an offer of a stocked pump or evidence of our dealership, stock or supply rights.
Published manufacturer data is a selection reference, not a quotation or evidence of supply availability.
Product overview
Triplex and quintuplex configurations
Drilling mud pumps circulate fluid at the pressure and flow required by the active hole section, bit hydraulics and surface system. Public technical data reviewed here includes a P-2200 triplex model rated at 2200 HP and an AP-2400 quintuplex model rated at 2400 HP. The cylinder count changes flow pulsation and mechanical architecture, so the RFQ should identify whether a complete new package or a replacement for an installed footprint is required.
P-2200 reference performance
The P-2200 table lists 1642 kW input power, 105 SPM rated speed, a 355.6 mm piston stroke and 51.7 MPa maximum working pressure. It also lists a maximum 230 mm metric liner, 39200 kg pump weight and performance tables across liner sizes. Actual pressure and flow are linked to liner diameter and speed; maximum flow and maximum pressure do not occur at the same liner selection.
AP-2400 comparison basis
The AP-2400 reference lists 1800 kW input, 127 SPM, a 300 mm stroke, 190 mm maximum liner and the same 51.7 MPa maximum working pressure. A technical comparison should include rated input and output power, liner program, discharge curve, suction conditions, pulsation dampener, relief arrangement and expendable-part scope.
RFQ checklist
State motor type, gearbox or chain drive, voltage, control philosophy, skid limits, suction and discharge connections and available utilities. Request the performance curve for the intended mud density and liner, general arrangement, foundation loads, maintenance clearances, NDE records for critical parts and witnessed test options. API 7K requirements should be tied to the exact offered product and facility documentation.
Technical reference trail
These public references support the equipment family and selection context. They do not imply dealership, authorization or a guaranteed order specification.
Frequently Asked Questions
Can maximum pressure and maximum flow be used together?
Usually not. Liner diameter and pump speed determine the pressure-flow point, so compare the full performance table for the planned mud program.
What is the main RFQ difference between triplex and quintuplex pumps?
Include cylinder count, rated speed, pulsation requirements, footprint, drive and spare-part strategy because the architectures are not direct substitutes.
Which package interfaces should be attached?
Provide foundation, suction and discharge piping, drive, electrical, control, lubrication and maintenance-clearance requirements.
Submit RFQ for Triplex and Quintuplex Drilling Mud Pumps
Send product, quantity, specification and destination details so the requirements can be reviewed with potential suppliers.
Technical and RFQ References
Check common units, standards and purchasing terminology, then build a structured request for this equipment.
